COMPOSITION OF THIS KIT:

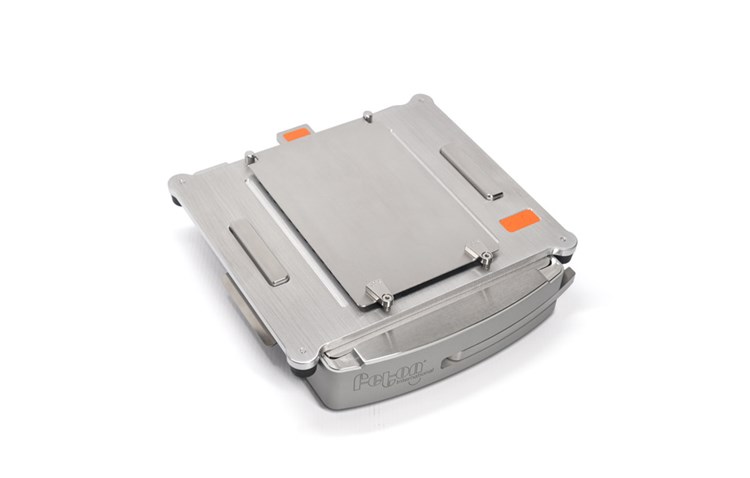

1 Combo capsulefiller Universal 120 capsules
includes:
Universal Frame
Modular Powder Stop, to be able to fill multiples of 10 capsules
Capsules Loader for the 5 sizes you choose
Plates Sets for the 5 sizes you choose
Not included: Capsules.
───────────────────
COMPATIBLE CAPSULE SIZES:
***4,3,2,1,0,00,000
Capsules available at Feton.
Don't forget to specify which capsule sizes you need when you order.
───────────────────
INFORMATIONS:
• The capsule filler fills 120 capsules in a single operation.
• The best choice for production of up to 1,200 capsules/hour
• Fills 5 different capsule sizes
• Our capsule filler is easy to clean.
• No adjustment required.
• PMMA plates.
• Stainless steel frame and small parts.
• Fills capsule sizes 000, 00, 0, 1, 2, 3 and 4.
───────────────────
HOW TO USE:
Video demonstration
1. Prepare your material: choose the right set of plates for the capsule size you are using. Install the plates in this order: 1) Spacer plate, 2) Bottom Plate, 3) Filling Plate, 4) Top Plate.
2. If you have a capsule Loader Feton, please refer to the Loader datasheet for instructions. If you do not have a capsule Loader, place the capsules into the Top Plate one by one.
3. Pull the Lever to lock the capsules’ bodies.
4. Pull the Top Plate upwards, starting from the front side for easier separation.
5. Release the Lever. If needed, push on the capsules’ bodies so that they are flush with the Filling Plate.
6. Fill the capsules with your preparation.
7. If needed, you can use a Tamper Feton to push the powder into the capsules to be able to fill a higher volume.
8. Place the Top Plate with the locked lid. Pull up the Base Plate to push the capsules’ bodies into the capsules’ heads. The capsules are now “pre-closed”.
9. Take the Top Plate with the locked lid and turn it upside down on your table. If you have a Serial Closer Feton, use it to close the capsules in one motion. If not, close the capsules by hand.
10. Open the lid and push the capsules out of the device.
DIMENSIONS AND WEIGHT:
Dimensions:
Length: 255 mm
width: 240 mm
height: 70 mm
Weight:
(frame + plates): from 5.8 kg (size 000) to 6.3 kg (size 4)
───────────────────
TIPS:
Find all
ourcapsulefillers.
───────────────────
HOW TO CLEAN:
It is
important to clean the parts in contact with the capsules or the powder thoroughly between each use to avoid contamination. Washing can be done by hand, in a dishwasher or in an autoclave. If done by hand, use warm water and soap.
Use a maximum temperature of 110°C / 230°F for all the metallic parts.
Use a maximum temperature of 40°C / 104°F for all the plastic parts.
If you have difficulties washing the inside of holes on the plates, use the
Feton-cleaning brush.
───────────────────
